Product Description:

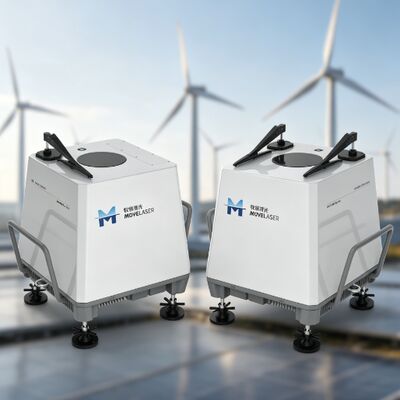

The Molas B300 utilizes the Doppler frequency shift principle and incorporates DBS scanning vector synthesis technology to accurately measure wind speed and direction at various altitudes. It is capable of gathering data from heights spanning 30 meters to 350 meters above the lidar device.
This advanced system is composed of four main components: a fiber laser lidar transmitter, a laser transceiver unit, a high-speed data acquisition module, and sophisticated data processing software designed for precision. Each of these components is highly compatible with one another, ensuring seamless integration and effective communication across the entire system.
The coordinated performance of these modules guarantees not only reliable data acquisition but also strong data security throughout the operation. Thanks to these features, the Molas B300 series achieves a level of performance that is recognized as internationally leading in its field.
Features:
The Molas B300 utilizes advanced non-contact measurement technology, ensuring operations that are both fast and convenient. It delivers industry-leading performance with exceptional accuracy, achieving a wind speed precision of 0.1 m/s and wind direction accuracy within 1°. This level of reliability provides solid data support crucial for thorough wind resource assessments.
Featuring a broad measurement range from 20 to 350 meters, the Molas B300 supports up to 12 or 24 customizable measurement layers, making it adaptable to a wide variety of wind measurement requirements. Its compact and lightweight design eliminates the need for land acquisition or civil engineering work, allowing for flexible installation even in challenging terrains. This flexibility effectively reduces both labor efforts and overall costs.
Engineered for all-weather functionality, the Molas B300 operates dependably under harsh outdoor conditions. Maintenance procedures are straightforward and rapid, ensuring safety by minimizing risks during operation. Additionally, its secure data transmission safeguards against potential economic and regulatory risks related to data breaches.
Supporting wireless configuration and data transfer, the Molas B300 is user-friendly and facilitates swift deployment. This capability significantly decreases the time and expense associated with project execution. The Molas B300 is truly designed to empower efficient and reliable wind measurement projects.
Technical Parameters:
|
Temperature Range
|
-40°C ~ +60°C
|
|
Powered By
|
24V ±5% DC, 100~230V AC
|
|
Power
|
≤60W
|
|
Size (with handle)
|
554 * 430 * 581 Mm³
|
|
Humidity Range
|
0% To 100%
|
|
Measurement Layer
|
12 Or 24
|
|
Wind Speed Range
|
0~75 M/s
|
|
Sampling Rate
|
1 Hz
|
|
Weight
|
≤50 Kg
|
|
Distance (Ordinary Type)
|
30~350m
|
Applications:
The MOLAS B300, a cutting-edge onshore wind remote sensing device manufactured in China, is designed to deliver precise and reliable wind speed and direction measurements. This advanced Doppler wind lidar system is ideal for various applications where accurate wind data is essential. With a wind direction range of 0~360° and a wind speed measurement capacity of 0~75 m/s, the MOLAS B300 excels in capturing comprehensive wind profiles. Its ordinary type distance range of 30~350 meters enables effective monitoring of wind conditions over a substantial area, making it a versatile tool for multiple scenarios.
One of the primary application occasions for the MOLAS B300 is in wind energy projects. As a ground-based wind lidar, it provides essential data for wind resource assessment, turbine siting, and performance optimization. The device’s fast delivery time and robust packaging in a flight case ensure that it can be quickly deployed to remote wind farm locations, minimizing downtime and accelerating project timelines. The sampling rate of 1 Hz allows for real-time monitoring and analysis, which is crucial for optimizing turbine operations and safety protocols.
In addition to wind energy, the MOLAS B300 is highly suitable for meteorological research and environmental monitoring. Its ability to accurately measure wind parameters supports weather forecasting models and climate studies, providing valuable insights into atmospheric dynamics. The device’s power versatility, accepting 24V ±5% DC and 100~230V AC inputs, allows it to be used in various field conditions, from remote research stations to urban environments.
Moreover, the MOLAS B300 is an excellent choice for industrial and maritime applications where understanding wind behavior is critical for operational safety and efficiency. Whether used at ports, offshore platforms, or construction sites, this Doppler wind lidar helps in mitigating risks associated with strong winds and gusts. The minimum order quantity of just one set makes it accessible for individual projects or large-scale deployments alike.
In summary, the MOLAS B300 by MOLAS is a powerful and flexible onshore wind remote sensing device that meets the demanding needs of wind energy, meteorology, environmental science, and industrial sectors. Its advanced features, including a comprehensive wind direction and speed range, reliable power options, and efficient data sampling, ensure high performance in a variety of real-world scenarios.
